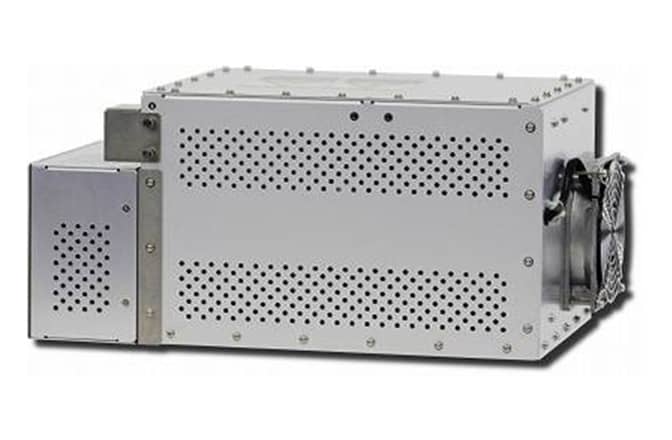

Visual Matching Unit

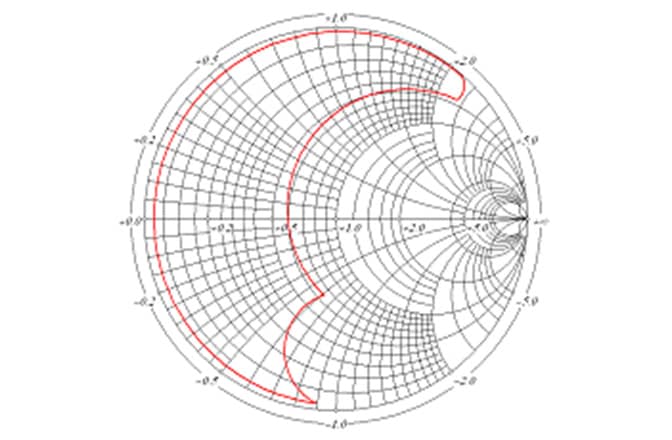

| Model | AMVG-3000-LA |
|---|---|
| Frequency | 13.56MHz |
| Maximum Possible Through-Power | 3000W |
| Input Impedance | 50Ω (at matching) |
| RF Input Connector | HN, female |
| RF Output Terminal | Cu Bar |
| Ground Terminal | Chassis Ground |
| Matching Network | |
| VSWR | Less than 1.2 or Ref 10W at matching whichever bigger |
| Variable Element | Variable vacuum capacitors |
| Variable Capacitor Control Motor | 2 phase pulse motor |
| Cooling Method | Forced air (FAN Airflow: Approx 2.7m3/min） Water Cooling (Flow: 2L/min, Temp:10 to 35oC, Pressure: 0.5Mpa(MAX), Connector:Rc1/4, female) |
| Interlock Connector | D-Sub 15P,female |
| I/F Connector | D-Sub 25P,male |
| Remote Connector | D-Sub 25P,female |
| RS232C Connector | D-Sub 9P,female |
| Power Supply | Single-Phase Rated AC100-200V, 50-60Hz, typ.20VA (50VA max) |
| Weight | Approx 11.0kg |
| Other | Vdc Sensor (0 to ±10V/0 to ±2500Vdc) Vpp Sensor (0 to 10V/0 to 5000Vpp) |
| Warranty Period | 1 year |
