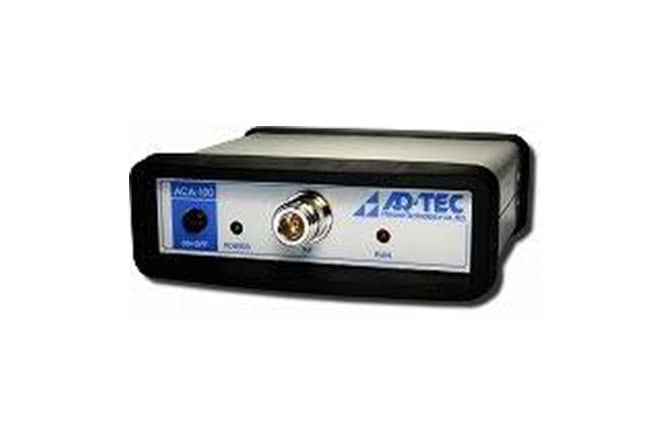

Chamber Analyzer
| Model | ACA-100 |
|---|---|
| Frequency Control | D.D.S:0.1 to 180MHz / Stability:Stability ±30ppm |
| Frequency Step Size | 1Hz to 10MHz |
| Calibration | Software controlled (no screwdriver adjustments) |
| ADC resolution | 12 bits |
| Impedance | 0.5 to 1kΩ |
| Accuracy | 1Ω±3% of reading up to 60MHz, ±5% of reading up to 180Hz |
| Phase Angle | ±90° |
| Parameters displayed | Magnitude of load impedance (|Z|)=(ZMag), Phase angle of load impedance (θ)=(Phase), Equivalent series resistance(Rs) and reactance(Xs), Equivalent parallel resistance(Rp) and reactance(Xp), Reactance is shown as inductance(μH) or capacitance (pF) according to the phase angle. |
| RF-Port | N, female |
| RF Output | 20μW (max) |
| Spurious Output | –30dBc or better |
| Max Stray RF input while measuring | Maximum value 150mV (-6dBm) |
| Max safe RF input | Maximum value 2V (+16dBm) |
| PC Interface | RS232C Data Rate: 57.6k or 115k baud USB/RS232C Converter is supplied with ACA-100 |
| Display | Graphics output on PC screen Mouse controlled cursor for digital parametric readout |
| Power Supply | DC 8 to 15V, 250mA max |
| Dimensions | 135(W) x 142(D) x 46(H) mm (max) |
| Others | *Display Smith Chart *Possible to set chamber RF input terminal as calibration point using coaxial cable and tools. |
| Warranty Period | 1 year |
